Description

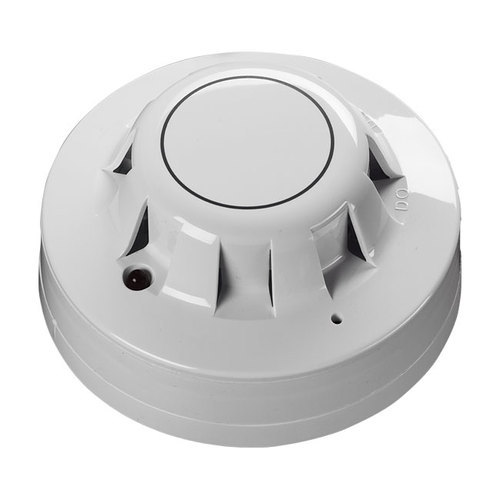

Asenware Convectional Fire Alarm Smoke Detector, uses a state-of-the-art optical sensing chamber. This detector is designed to provide open area protection and to be used with the most conventional fire alarm panel.

Operating Voltage Range: 9 to 28 VDC Non-polarized

Standby Current: ≤120uA@24VDC

Maximum Alarm Current(LED on): ≤15mA@24VDC
（1K Ohm current-limiting resistance）

Operating Humidity Range: ≤95%RH(40℃±2℃)Relative Humidity, Non-condensing

Operating Temperature Range: -10℃ to 50℃(14ºF to 122ºF)

Smoke Alarm Sensitivity: 0.1-0.15dB/m

Height: 48.2mm installed in Base

Diameter: 99.45mm

Standard Number ref: EN 54-7:2000

EC certificate: 0832-CPR-F2071
